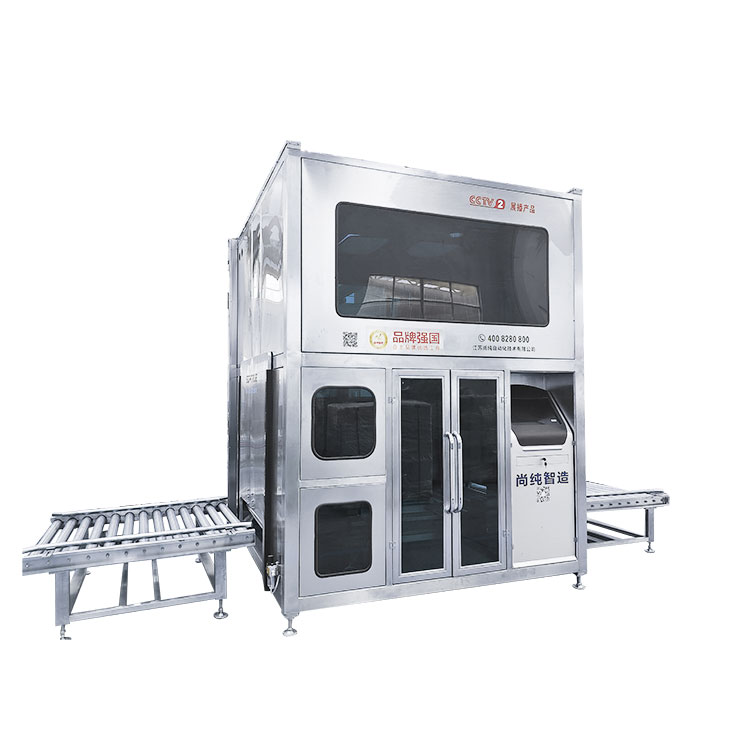

I-200L 1000L Umshini Wokugcwalisa Ngokuzenzakalelayo Obonakalayo

(Ukubukeka kwemishini kuzohluka ngokuya ngomsebenzi owenziwe ngokwezifiso noma ukuthuthukiswa kobuchwepheshe, ngokuya ngento ebonakalayo.)

USomtrue umkhiqizi ochwepheshe, ozibophezele ekunikezeni amakhasimende omhlaba ngemikhiqizo namasevisi angcono. Umshini wethu wokugcwalisa ozenzakalelayo we-200L 1000L awutholakali kahle kuphela emakethe yasekhaya, kodwa futhi uzuze ukuqashelwa okubanzi emakethe yamazwe ngamazwe. Ngemizamo engapheli kanye nokuqamba okusha okuqhubekayo, i-Somtrue iyaqhubeka nokuthuthukisa izinga layo lobuchwepheshe namandla okukhiqiza ukuze ihlangabezane nezidingo ezikhulayo zamakhasimende omhlaba. Sikholelwa ukuthi ngemizamo nokubambisana kwezinhlangothi zombili, sizokwakha ikusasa elingcono! Kungakhathaliseki ukuthi ikhasimende elikhona noma uzakwethu omusha, sibheke phambili ekukhuleni ndawonye nawe futhi sizuze impumelelo enkulu kanye nempumelelo. Masihlangabezane nenselele ndawonye, ​​sidale inani elikhulu kumakhasimende, futhi sabelane ngentuthuko nenqubekela phambili yomkhakha!

I-200L 1000L Uhlolojikelele Lomshini Wokugcwalisa Ngokuzenzakalelayo Obonakalayo:

Isistimu yokupakisha ehlakaniphile eklanyelwe ngokukhethekile imiphongolo engu-200L endaweni yokumelana nokuqhuma komgqomo ongu-200L (okuhlanganisa nethreyi). Isebenzisa umlomo wokusesha obonakalayo, ingabona ukupakishwa okuzenzakalelayo komgqomo we-200L wokuvula okuzenzakalelayo, ukutshuza okuzenzakalelayo, ukugcwalisa okuzenzakalelayo okuzenzakalelayo, ukuvuza okuzenzakalelayo, isembozo sentambo yokuvala okuzenzakalelayo nezinye izinqubo eziphelele.

Ingxenye eyinhloko yokugcwalisa ithatha ifreyimu yokuvikela imvelo, engabuka ifasitela, futhi ihambisa ngokuzenzakalelayo umnyango ngaphakathi nangaphandle kwebhakede, elingakha indawo evaliwe lapho ugcwalisa. Ingxenye yokulawula kagesi yalo mshini iqukethe isilawuli esihlelekayo se-PLC, imojula yesisindo, isistimu yokubuka, njll., enekhono eliqinile lokulawula kanye nezinga eliphezulu lokuzenzekelayo. Ngomsebenzi wokungabikho kokugcwalisa umgqomo, akukho ukugcwaliswa komlomo womgqomo akuvunyelwe, ukugwema ukungcola nokungcola kwezinto ezibonakalayo, ukuze ukuhlanganiswa kwe-electromechanical komshini kube ukusebenza okuphelele.

Umgomo wokusebenza wokulinganisa usetshenziselwa ukuqaphela ukulawulwa kwenani lokugcwalisa. Isikhathi sokuvula i-valve yokugcwalisa silawulwa isilawuli esihlelekayo se-PLC, futhi impahla igelezela ngaphakathi (noma ithuthwe ngokuphakelayo kwepompo) iye esitsheni. Umnyango wokugcwalisa walo mshini ubona ukugcwalisa ngokushesha nokugcwalisa kancane ngepayipi eliwugqinsi nelincane, futhi ukugeleza kokugcwalisa kancane kuyalungiseka. Ngesikhathi sokuqala sokugcwalisa, ipayipi eliphindwe kabili livuliwe ngesikhathi esifanayo. Ngemuva kwesikhathi sokugcwalisa, isilinda sokuntywila siyakhuphuka siye endaweni yomlomo wombhobho, ipayipi elingahluziwe liyavalwa, futhi ipayipi elincanyana liyaqhubeka nokugcwala kancane kuze kube isethi yevolumu yokugcwalisa iyonke. Ikhava ye-spin ezenzakalelayo yenziwa ekupheleni kokugcwalisa.

Imishini inesistimu yokukala nempendulo, engasetha futhi ilungise ivolumu yokugcwalisa ngokushesha futhi kancane.

Isikrini sokuthinta singabonisa kanyekanye isikhathi samanje, isimo semishini esebenzayo, isisindo sokugcwalisa, okukhiphayo okuqongelelekayo neminye imisebenzi.

Izinto zokusebenza zinemisebenzi ye-alamu, isibonisi samaphutha kanye nohlelo lokucubungula ngokushesha.

Umugqa wokugcwalisa unomsebenzi wokuvikela i-interlock, ukugcwaliswa kuyeka ngokuzenzakalelayo, nokugcwalisa ngokuzenzakalelayo lapho ukugcwaliswa kusendaweni.

Lo mshini ufakwe isembozo sonke, uhlangothi olulodwa lwebhakede luvulekile, gcina umoya wemvelo; okunye kuyisakhiwo esivaliwe, esine-Windows, futhi ifakwe umoya omncane wokulawula ngesandla.

Lo mshini uvaliwe ngokuphelele, nge-interface ye-pressurization, ungashaja imishini, unciphise igesi yangaphandle emishinini.

Imingcele yezobuchwepheshe eyinhloko:

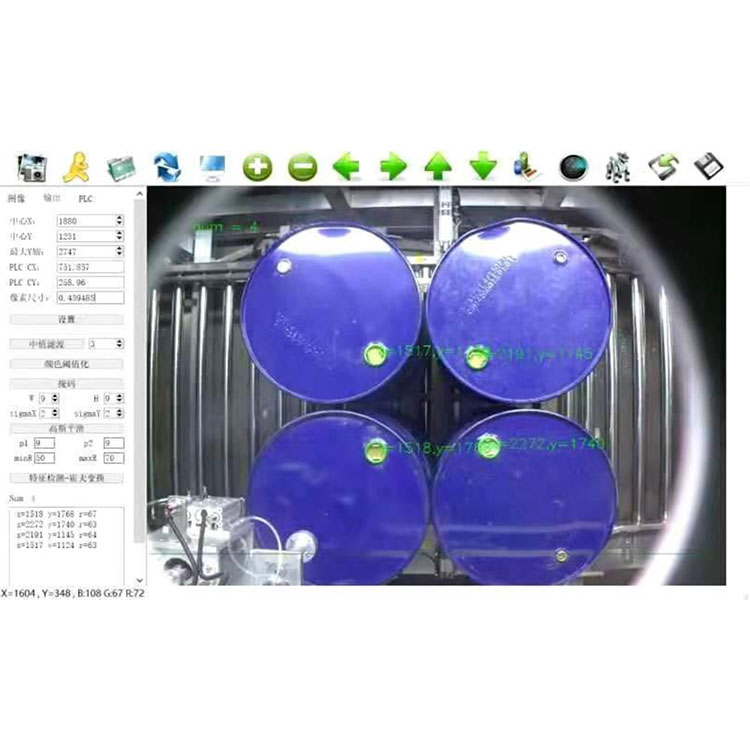

Isistimu yokubeka ebonakalayo

Umbono: kusetshenziswa ikhamera ehlakaniphile yezimboni, elayishwe ebhokisini lomshini wokuhlukanisa ukuqhuma obonakalayo ukuze isebenze. Kusukela kukhamera ehlakaniphile, kanye nokulawula kwe-PLC kuqondisa uhlelo oluhambayo lukhomba isibhamu sokugcwalisa emgodini we-barrel. I-3 D iqondisa uhlelo oluhambayo: uhlelo lwesitimela somhlahlandlela kanye ne-explosion-proof deceleration motor.

Umsebenzi omkhulu:

Ukusesha okuzenzakalelayo: ukuma okubukwayo, xhumanisa ukusesha kwesistimu enyakazayo, ukugcwalisa ukugcwala kwesibhamu.

Ukugcwaliswa komthamo okuzenzakalelayo okusheshayo nokunesivinini esiphindwe kabili: ukuqinisekisa ukunemba kokugcwalisa kanye namandla okukhiqiza;

Ukugcwalisa ifomu: ukugcwalisa noma ngaphansi kwezinga le-liquid;

I-valve yesisekelo se-pneumatic ihlale ivulekile, yengeza kancane kancane umkhawulo wokugeleza wangaphambili-unciphisa izinga lokugeleza kwesibhamu sokugcwalisa;

Idizayini yenkomishi ye-liquid-nciphisa ukuvuza koketshezi olusele ngemuva kokugcotshwa;

Ukugcwalisa okuzenzakalelayo kanye nokusebenza okulula kokugcwalisa nokugcinwa;

Umsebenzi wokucwecwa okuzenzakalelayo-unqoba umthelela wezici zesisindo ezingahambisani zokugcwalisa isitsha ngokunemba;

Iphuzu lenani eligcwaliswayo elilungisekayo-ubuningi liguqulelwe kububanzi besisindo esiningi;

Ukuxilongwa okuzenzakalelayo, i-alamu yephutha-ithuthukisa ukuthembeka komsebenzi wesistimu;

Ibhakede elixhumene nokuphepha lisendaweni, fafaza isibhamu phansi; gcwalisa isibhamu phezulu emgqonyeni ukubuya;

Ukulawula ukuzikhiya-hlola imbobo ngaphambi kokugcwalisa;

Isitoreji sokulungiselelwa komkhiqizo-singagcina inani lesethi yesisindo semikhiqizo ehlukahlukene kanye nemingcele ehlobene yokugcwaliswa;

Ukutholwa kokubekezelelana-ukutholwa okuzenzakalelayo kwephutha lokugcwalisa;

Isikrini sokuthinta-isixhumi esibonakalayo sesiShayina, enembile, isilungiselelo esikahle.

Isexwayiso se-alamu-Kunembe kuze kube seqophelweni lokwehluleka.

Uhlelo lokulawula oluzenzakalelayo

Wonke umugqa wakhiwe izinhlelo eziningi ze-PLC, ezingalawulwa ngokuzimela futhi zixhumane. Inemisebenzi yokuzihlola kwesistimu, i-alamu yokubonisa iphutha, ukunemba, isivinini, okukhiphayo, njll. Isistimu ngayinye inomshini wayo wokusebenzisana nomshini womuntu, futhi wonke amapharamitha angasebenza kusixhumi esibonakalayo somshini womuntu. Nikeza ngeshadi lokugeleza lenqubo yokulawula amapayipi elinemininingwane kanye nomdwebo onengqondo.

Ingagcina uhlobo lwempahla yokugcwalisa, inqwaba yenqwaba, usuku, isisindo somphongolo ngamunye, isikhathi sokugcina neminye imisebenzi yokurekhoda

Uhlelo lokugcwalisa kanye nesistimu ye-spin cap evulekile

Ukugcwalisa ikhanda lesibhamu: ngendlela yokuvimbela kwangaphandle, kuzongena ngokuzenzakalelayo emlonyeni womgqomo (phansi komgqomo) ngesikhathi sokugcwalisa, futhi kuphakame ngokuzenzakalelayo ngemva kokugcwalisa. Ikhanda lesibhamu sokugcwalisa liyidizayini engenalutho, futhi impahla ingahlanzwa ngemuva kokuba ikhanda lesibhamu livaliwe ukuvimbela ukushaywa kwempahla.

Ingxenye engezansi yekhanda lesibhamu sokugcwalisa inikezwa nge-cylinder extending liquid plate. Ngemuva kokugcwaliswa, ikhanda lokugcwalisa liyakhuphuka futhi ipuleti lokudonsa liyanwebeka ukuze kuvinjelwe into ekungcoliseni umzimba womugqa wokupakisha nokudlulisa. I-liquid yokuxhuma i-disc yenzelwe ukuhlakazwa kwamahhala, okungahle kuhlakazwe ngaphandle kwamathuluzi futhi kulula ukuyihlanza.

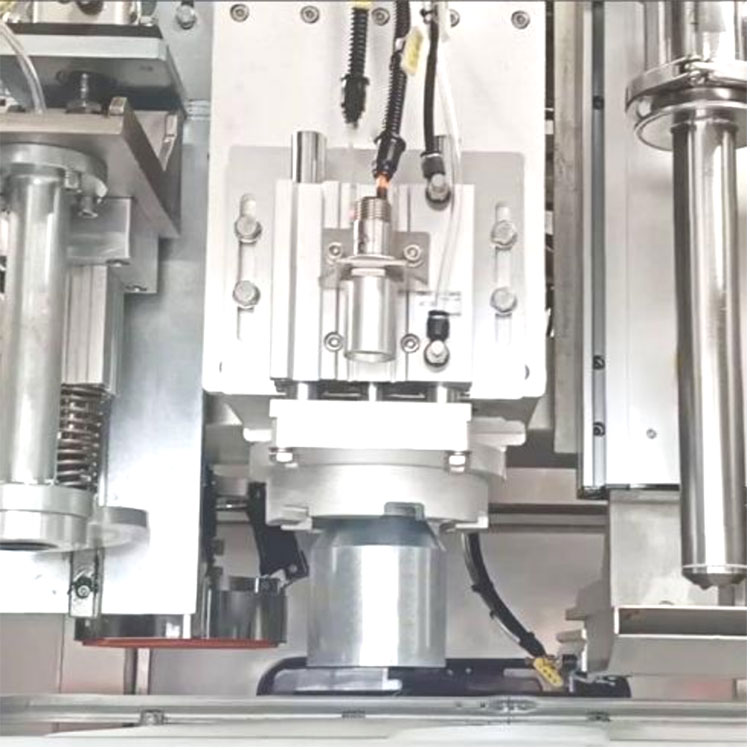

Ikhava evulekile, ingxenye yekhava ye-spin: isebenzisa ubuchwepheshe obunelungelo lobunikazi benkampani, ingapakisha ikhanda lekhava elijikelezayo kanye nendawo yomphongolo iqonde phezulu, futhi ingaba bushelelezi, ivuleke kalula ikhava bese iphotha ikhava, ingalimazi ikhava, ungalimazi ikhava. , idigri yokuvala ikhava eqinile iphezulu.

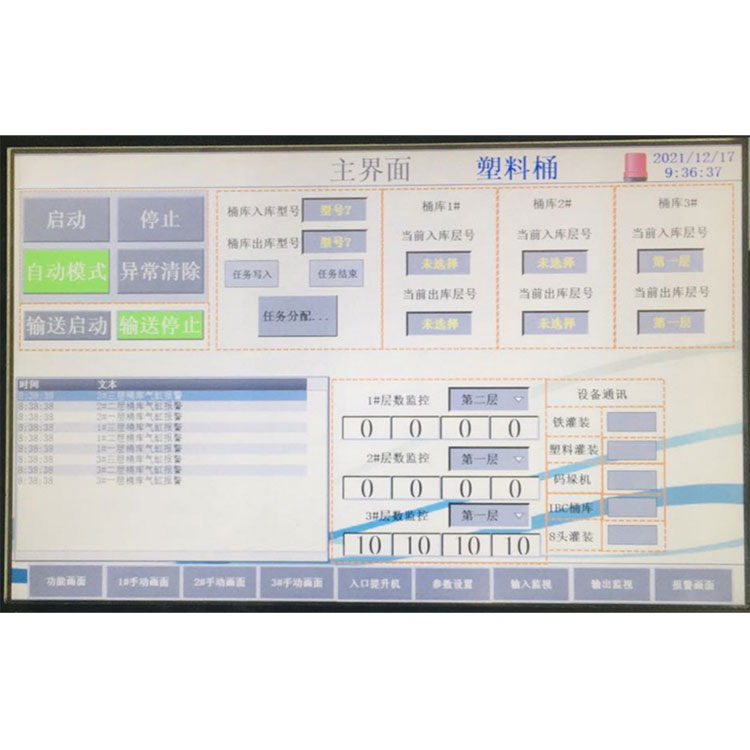

Isikrini sokuthinta kanye nesistimu yokukala

Ukusetha ipharamitha yokugcwalisa kanye nokusebenza ngokusebenza kwesikrini esithintwayo, kulula futhi kunembile, futhi ngokubonisa izinga lokushisa, ukuxilongwa kwephutha kanye ne-alamu, umsebenzi osheshayo. Inomsebenzi wohlelo lokugcina inkumbulo, ingagcina amasethi amaningi wamapharamitha, futhi ingabuka idatha yomlando. Ingakwazi ukubala ngokuzenzakalelayo ukuchezuka kokulinganisa, futhi ingaqanjwa ngezinhlelo ezahlukene, iguqule imininingwane ehlukene noma iguqule umthamo wokukhiqiza, idinga kuphela ukulungisa amapharamitha ahlukene, ingathuthukisa ukusebenza kahle komsebenzi. Uhlelo lokukala lwamukela inzwa yomkhiqizo yaseMelika edumile ukuze kuqinisekiswe ukunemba kokugcwalisa. Ngaphezu kwalokho, uhlelo lunomsebenzi wokuvikela amafutha, futhi inzwa ilungele ukufaka, ukususa nokulungisa.

Ithebula lesikali linomsebenzi wokuzivikela, lapho ikhanda lombhobho wesibhamu, ikhanda lesibhamu libuyela ngokuzenzakalelayo. Futhi ivikelwe ngesikhathi sokugcwalisa esiphezulu.

ukuphepha okuhlanganayo

I-Safety Interlock kusayithi lokuphakelayo:

Faka inkinobho yenombolo 1 no-2 ngesikhathi sokuphakela. Uma ithreyi ibekwe futhi ithuthwa phezulu, cindezela inkinobho # 1, bese umugqa womhlangano uphethe uphawu lwe-No.1 bese uhambisa ithreyi ku-No.1 imishini yokugcwalisa.

Nakulokhu futhi, lapho ugqoko ubekwa futhi uthuthwa ethreyini, cindezela inkinobho No.2. Khona-ke umugqa wokuhlanganisa uthwala uphawu lwe-No.2 futhi ulethe ithreyi kumishini yokugcwalisa engu-No.2.

Lapho inombolo. Ukugcwaliswa kwe-1 kuyakhishwa, umugqa wokuhlanganisa uzothwala uphawu lokuqeda le-No.1, futhi ngeke uye kumshini wokugcwalisa ongu-No.2 esiteshini esilandelayo.

Ukugcwalisa I-Safety Interlock:

satety exit:

Uma umnyango wezokuphepha uvuleka, misa kancane isenzo samanje;

Ngemuva kokuthi umnyango wokuphepha uvaliwe, ukulawulwa kokufinyelela okungavamile kuyasuswa, futhi ukugcwaliswa kuyaqhubeka nokuqedela ukusebenza okuvamile.

I-I-Diving interlock:

Ngaphandle komlomo webhakede lokugcwalisa, i-alamu yokucindezela engavamile ikhiqizwa, futhi ikhanda lokugcwalisa likhuphukela endaweni yokuqala futhi lixazululwe ngokungenelela okwenziwa ngesandla.

Ukugcwalisa isisindo esiningi:

Ukugcwalisa ukuhlolwa kokugcwalisa isikhathi esengeziwe, wonke umshini ukuyeka ukugcwalisa, i-alamu, ukungenelela okwenziwa ngesandla ukuxazulula.

Igcwalisa i-alamu yokuxhuma

Ikhamera ithatha i-alamu engavamile

I-alamu yezinto ezingenayo neziphumayo ezingajwayelekile
